17 May 2015

Neo4j: Refactoring the BBC football live text fouls graph

Yesterday I wrote about a Neo4j graph I’ve started building which contains all the fouls committed in the Champions League game between Barcelona & Bayern Munich and surrounding meta data.

While adding other events into the graph I realised that I’d added some duplication in the model and the model could do with some refactoring to make it easier to use.

To recap, this is the model that we designed in the previous blog post:

The duplication is on the left hand side of the model - we model a foul as being committed by one player against another and then hook the foul back into the match. By doing that we’re not using the 'appearance' concept which links a player and a match together.

We can make the 'COMMITTED_IN_MATCH' relationship redundant by connecting the foul to appearance rather than to player. The match the foul was committed in can then be found by navigating through the appearance node.

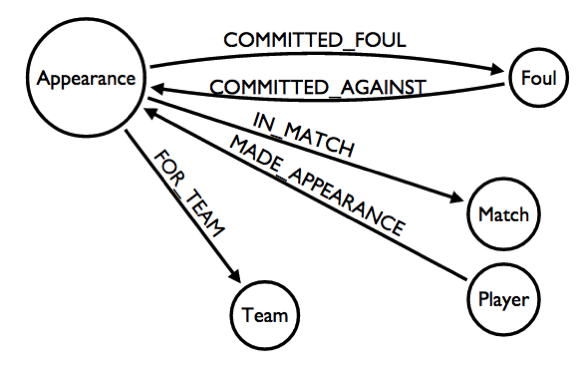

This is what we want the graph to look like:

We’ll move towards this new model in 3 steps:

Introduce the new structure alongside the existing one
Rewrite our queries to use the new structure
Remove the old structure

Introducing the new structure

First up let’s write a query to introduce the new structure.

match (foul:Foul)-[:COMMITTED_AGAINST]->(fouledPlayer),
      (foul)<-[:COMMITTED_FOUL]-(foulingPlayer),
      (foul)-[:COMMITTED_IN_MATCH]->(match:Match {id: "32683310"}),
      (foulingPlayer)-[:MADE_APPEARANCE]-(foulingPlayerApp)-[:IN_MATCH]->(match),
      (fouledPlayer)-[:MADE_APPEARANCE]-(fouledPlayerApp)-[:IN_MATCH]->(match)
MERGE (foul)<-[:COMMITTED_FOUL]-(foulingPlayerApp)
MERGE (foul)-[:COMMITTED_AGAINST]->(fouledPlayerApp)

Remember we’re not going to delete the old structure yet so that’s why there aren’t any delete statements in here.

Rewriting our queries

Now we need to update our queries to work against the new graph structure:

Where do the fouls happen?

match (match:Match {id: "32683310"})<-[:COMMITTED_IN_MATCH]-(foul)
RETURN foul.location AS location, COUNT(*) as fouls
ORDER BY fouls DESC

becomes

match (match:Match {id: "32683310"})<-[:IN_MATCH]-()<-[]-(foul:Foul)
RETURN foul.location AS location, COUNT(*) as fouls
ORDER BY fouls DESC

Who fouls the most?

match (match:Match {id: "32683310"})<-[:COMMITTED_IN_MATCH]-(foul:Foul)<-[:COMMITTED_FOUL]-(fouler:Player)
RETURN fouler.name AS fouler, COUNT(*) as fouls
ORDER BY fouls DESC
LIMIT 10;

becomes

match (match:Match {id: "32683310"})<-[:IN_MATCH]-(appearance)-[:COMMITTED_FOUL]->(foul:Foul),
      (appearance)<-[:MADE_APPEARANCE]-(fouler)
RETURN fouler.name AS fouler, COUNT(*) as fouls
ORDER BY fouls DESC
LIMIT 10

Who was fouled the most?

match (match:Match {id: "32683310"})<-[:IN_MATCH]-(appearance)-[r:COMMITTED_FOUL]->(foul:Foul),
      (appearance)<-[:MADE_APPEARANCE]-(fouler)
RETURN fouler.name AS fouler, COUNT(*) as fouls
ORDER BY fouls DESC
LIMIT 10

becomes

match (match:Match {id: "32683310"})<-[:IN_MATCH]-(appearance)<-[:COMMITTED_AGAINST]->(foul:Foul),
      (appearance)<-[:MADE_APPEARANCE]-(fouled)
RETURN fouled.name AS fouled, COUNT(*) as fouls
ORDER BY fouls DESC
LIMIT 10

Who fouled who the most?

match (match:Match {id: "32683310"})<-[:COMMITTED_IN_MATCH]-(foul:Foul)-[:COMMITTED_AGAINST]->(fouled:Player),
      (foul)<-[:COMMITTED_FOUL]-(fouler:Player)
RETURN fouler.name AS fouler, fouled.name AS fouled, COUNT(*) as fouls
ORDER BY fouls DESC
LIMIT 10

becomes

match (match:Match {id: "32683310"}),
      (match)<-[:IN_MATCH]-(fouledApp)<-[:COMMITTED_AGAINST]->(foul:Foul)<-[:COMMITTED_FOUL]-(foulerApp)-[:IN_MATCH]->(match),
      (fouledApp)<-[:MADE_APPEARANCE]-(fouled),
      (foulerApp)<-[:MADE_APPEARANCE]-(fouler)
RETURN fouler.name AS fouler, fouled.name AS fouled, COUNT(*) as fouls
ORDER BY fouls DESC
LIMIT 10;

Which team fouled most?

match (match:Match {id: "32683310"})<-[:COMMITTED_IN_MATCH]-()<-[:COMMITTED_FOUL]-(fouler),
      (fouler)-[:MADE_APPEARANCE]-(app)-[:IN_MATCH]-(match),
      (app)-[:FOR_TEAM]->(team)
RETURN team.name, COUNT(*) as fouls
ORDER BY fouls DESC

becomes

match (match:Match {id: "32683310"})<-[:IN_MATCH]-(app:Appearance)-[:COMMITTED_FOUL]->(),
      (app)-[:FOR_TEAM]->(team)
RETURN team.name, COUNT(*) as fouls
ORDER BY fouls DESC

Worst fouler for each team

match (match:Match {id: "32683310"})<-[:COMMITTED_IN_MATCH]-(foul)<-[:COMMITTED_FOUL]-(fouler),
      (fouler)-[:MADE_APPEARANCE]-(app)-[:IN_MATCH]-(match),
      (app)-[:FOR_TEAM]->(team)
WITH team, fouler, COUNT(*) AS fouls
ORDER BY team.name, fouls DESC
WITH team, COLLECT({fouler:fouler, fouls:fouls})[0] AS topFouler
RETURN team.name, topFouler.fouler.name, topFouler.fouls;

becomes

match (match:Match {id: "32683310"})<-[:IN_MATCH]-(app:Appearance)-[:COMMITTED_FOUL]->(),
      (app)-[:FOR_TEAM]->(team),
      (fouler)-[:MADE_APPEARANCE]->(app)
WITH team, fouler, COUNT(*) AS fouls
ORDER BY team.name, fouls DESC
WITH team, COLLECT({fouler:fouler, fouls:fouls})[0] AS topFouler
RETURN team.name, topFouler.fouler.name, topFouler.fouls;

Most fouled against for each team

match (match:Match {id: "32683310"})<-[:COMMITTED_IN_MATCH]-(foul)<-[:COMMITTED_FOUL]-(fouler),
      (fouler)-[:MADE_APPEARANCE]-(app)-[:IN_MATCH]-(match),
      (app)-[:FOR_TEAM]->(team)
WITH team, fouler, COUNT(*) AS fouls
ORDER BY team.name, fouls DESC
WITH team, COLLECT({fouler:fouler, fouls:fouls})[0] AS topFouler
RETURN team.name, topFouler.fouler.name, topFouler.fouls

becomes

match (match:Match {id: "32683310"})<-[:IN_MATCH]-(app:Appearance)<-[:COMMITTED_AGAINST]->(),
      (app)-[:FOR_TEAM]->(team),
      (fouled)-[:MADE_APPEARANCE]->(app)
WITH team, fouled, COUNT(*) AS fouls
ORDER BY team.name, fouls DESC
WITH team, COLLECT({fouled:fouled, fouls:fouls})[0] AS topFouled
RETURN team.name, topFouled.fouled.name, topFouled.fouls

The early queries are made more complicated by the refactoring but the latter ones are slightly simpler. I think we need to hook some more events onto the appearance node to see whether this refactoring is worthwhile or not.

Removing the old structure

Holding judgement for now, let’s look at how we’d remove the old structure - the final step in this refactoring:

match (match:Match {id: "32683310"})<-[oldRel:COMMITTED_IN_MATCH]-(foul:Foul)
DELETE oldRel

match (player:Player)<-[oldRel:COMMITTED_AGAINST]-(foul:Foul)
DELETE oldRel

match (player:Player)-[oldRel:COMMITTED_FOUL]->(foul:Foul)
DELETE oldRel

Hopefully you can see how you’d go about refactoring your own graph if you realise the model isn’t quite what you want.

Any questions/thoughts/suggestions let me know!
